Products Description
Product Parameters
The UV Flying Laser Coding Machine is a high-speed continuous marking model designed to enhance productivity. It employs industrial-grade UV lasers, known for their excellent beam quality and high reliability. With a marking speed of up to 200 meters per minute (for single-line digits and letters with a height of 2MM), it fulfills the marking requirements for high-speed, high-volume applications, primarily used for date of manufacture, anti-counterfeiting, and packaging in the pharmaceutical and food industries. This model supports functions such as automatic coding, serial numbers, batch numbers, dates, barcodes, QR codes, and automatic number skipping, catering to the diverse needs of various industries.
The UV Series Flying Laser Coding Machine exhibits broad material compatibility, suitable for ultra-fine marking on various materials, including various types of piping, plastic films, plastic bottle caps, and other materials like PPR, PVC, PE, etc. It is widely used in the production and marking of graphics and text such as effective dates, batch numbers, shifts, manufacturer names, etc., in fields such as food and beverage packaging, alcoholic beverages, dairy products, electronic components, pharmaceuticals, personal care products, tobacco, chemical building materials, and more.
Marking Speed Up to 200 Meters per Minute
The fastest laser marking system in the industry, with a marking speed of up to 200 meters per minute (for single-line digits and letters with a height of 2MM), meeting the needs of medium-speed or high-speed production lines.High-Quality and Reliable UV Laser Source
Using high-quality UV lasers with an ultra-stable compact resonant cavity structure, it boasts high electro-optic conversion efficiency, excellent beam quality, high reliability, long lifespan, and maintenance-free operation.Compact Design and Flexible Configuration
Adopting the industry-innovative compact laser marking head enables simple integration, reduces installation costs, and enhances positioning flexibility.Flexible Installation Methods and Easy Adjustment of Installation Positions

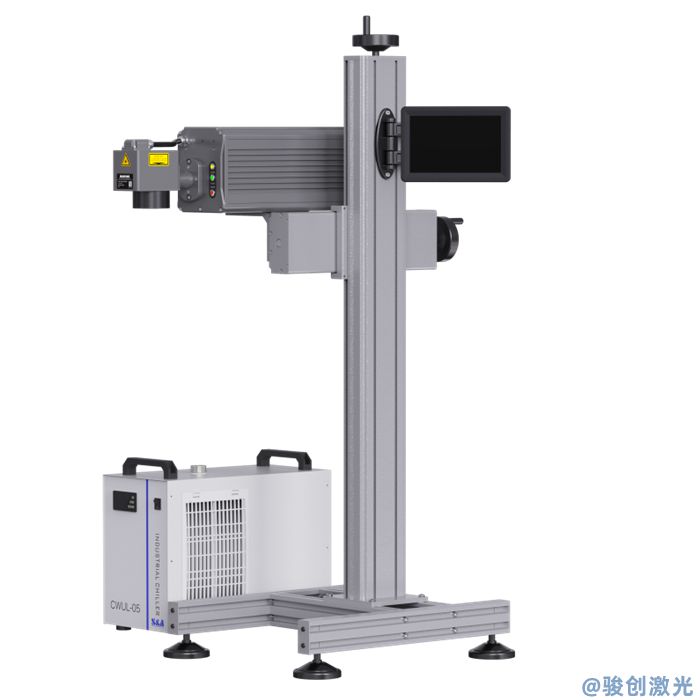

Designed specifically for high-speed production lines, the flying model can be flexibly integrated with the production line for use. The machine frame can be moved and adjusted up and down, left and right, and the marking head can rotate 360° for marking.
Product Parameters
The UV Series employs JPT's pulsed UV lasers, which offer exceptional beam quality and perfect beam spot characteristics. The whole machine adopts an integrated structural design, combining the optical path and external drive circuit into one, providing the product series with strong anti-interference capabilities. The optimized and upgraded fully sealed structure effectively prevents external dus
t from entering.
Model Series | UV Series (JPT Laser) | UV Series (JPT Laser) | UV Series (JPT Laser) | UV Series (JPT Laser) |
Model | JC-UV-3 | JC-UV-5 | JC-UV-3L | JC-UV-10L |
Laser Model | LARK-355-3A | LARK-355-5A | SEAL-355-3E | SEAL-355-10S |
Output Power | 3W | 5W | 3W | 10W |
Beam Quality M2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 |
Laser Wavelength | 355 nm | 355 nm | 355 nm | 355 nm |
Pulse Frequency | 20-150 kHz | 20-150 kHz | 20-150 kHz | 40-300 kHz |
Beam Diameter at Exit | 0.7±0.1 mm | 0.7±0.1 mm | 0.7±0.1 mm | 0.8±0.1 mm |
Output Power Stability | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 3% |
Design Lifespan | Approximately 20,000 operating hours (not service lifespan) | Approximately 20,000 operating hours (not service lifespan) | Approximately 20,000 operating hours (not service lifespan) | Approximately 20,000 operating hours (not service lifespan) |
Marking Range | 100~300mm (selectable range) | 100~300mm (selectable range) | 100~300mm (selectable range) | 100~300mm (selectable range) |
Engraving Depth | ≤1mm (depending on power and time) | ≤1mm (depending on power and time) | ≤1mm (depending on power and time) | ≤1mm (depending on power and time) |
Engraving Speed | ≤10000mm/s | ≤10000mm/s | ≤10000mm/s | ≤10000mm/s |
Repeat Accuracy | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
Minimum Marking Line Width | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
Minimum Character Height | 0.15mm | 0.15mm | 0.15mm | 0.15mm |
Cooling Method | Built-in air cooling | Built-in air cooling | External water cooling | External water cooling |
System Power Supply | 500W / 220V / 50Hz (110V compatible) | 500W / 220V / 50Hz (110V compatible) | 500W / 220V / 50Hz (110V compatible) | 500W / 220V / 50Hz (110V compatible) |
Temperature, Humidity | 0~40°C, 30%≤RH≤85%. Air conditioning required if used outside this range. | 0~40°C, 30%≤RH≤85%. Air conditioning required if used outside this range. | 0~40°C, 30%≤RH≤85%. Air conditioning required if used outside this range. | 0~40°C, 30%≤RH≤85%. Air conditioning required if used outside this range. |
Oil Mist, Condensation | Not Allowed | Not Allowed | Not Allowed | Not Allowed |
Operating System | Flying Laser Marking System | Flying Laser Marking System | Flying Laser Marking System | Flying Laser Marking System |
File Formats | Software supports marking content such as text, QR codes, barcodes, serial numbers, and graphics. | Software supports marking content such as text, QR codes, barcodes, serial numbers, and graphics. | Software supports marking content such as text, QR codes, barcodes, serial numbers, and graphics. | Software supports marking content such as text, QR codes, barcodes, serial numbers, and graphics. |
