Products Description

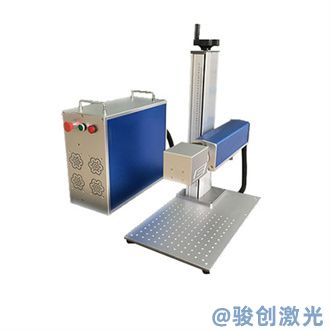

Split-Type Laser Marking Machine: Flexible and Convenient Design
The split-type laser marking machine has a separate main body and marking table, which allows for flexible placement without being constrained by space. Its operation is simple and quick, and the split design expands its range of applications, making it highly favored by manufacturers in various industries.
Applications
- Electronics Industry
- Electrical Appliance Industry
- Watchmaking Industry
- Jewelry Industry
- Hardware Industry
- Instrument and Meter Industry
- Signage and Nameplate Industry
- Automotive Manufacturing
- Shipbuilding
- Aerospace Industry
Advantages
Portable Design: Flexible, easy to use, and convenient.
High-Quality Light Source: The laser spot quality is excellent, with uniform light power density and stable output power. It has characteristics like no light leakage and high resistance to reflection, meeting the demands of mainstream market applications.
High-Speed Scanning Galvo: Small in size, fast in speed, and stable in performance.
Simple Operation, Low Energy Consumption: No consumables required, low energy consumption, and the ability to produce finer and clearer markings. It has irreplaceable advantages in industries with higher requirements for depth, smoothness, and precision, fully meeting the continuous operation demands of industrial production.
Powerful Marking Software: Compatible with files from AutoCAD, CorelDRAW, Photoshop, etc. It supports file formats like PLT, AI, DXF, BMP, JPG, and also supports SHX and TTF font files with an internal font library. The software allows for variable numbering, barcode, and QR code marking.
Parameter | Description |
Laser Type | Fiber Laser, CO? Laser, Green Laser, UV Laser |
Laser Power | 10W, 20W, 30W, 50W, 100W, etc. |
Laser Wavelength | Fiber Laser: 1064nm, CO? Laser: 10600nm, Green Laser: 532nm, UV Laser: 355nm |
Marking Area | 100mm×100mm, 200mm×200mm, 300mm×300mm, etc. |
Minimum Line Width | 0.02mm to 0.1mm |
Minimum Character Height | 0.1mm to 0.2mm |
Repeat Positioning Accuracy | ±0.01mm to ±0.03mm |
Marking Speed | 7000mm/s to 12000mm/s |
Cooling Method | Water cooling, Air cooling |
Input Voltage | 220V/50Hz or 110V/60Hz |
Operating Temperature | 0℃ to 40℃ |
Relative Humidity | 10% to 90% (Non-condensing) |
Control System | Supports Windows OS, uses dedicated software (e.g., EZCAD) |
Optical System | Scanning Galvo + F-θ Lens |
Machine Size | 800mm × 700mm × 1200mm (varies by model) |
Machine Weight | 50kg to 150kg (varies by model) |
Marking Materials | Metals: Stainless steel, aluminum, copper, titanium; Non-metals: Plastic, ceramic, glass, wood, etc. |
