Products Description

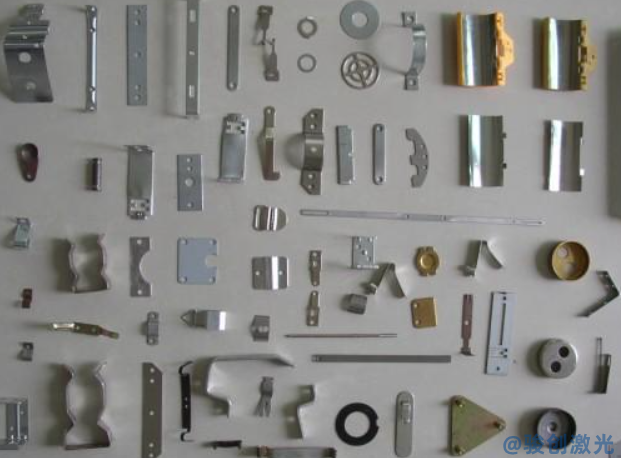

Junchuang's special laser marking machine for metal products can mark almost all metal materials, including: aluminum, magnesium, potassium, sodium, calcium, strontium, barium, copper, lead, zinc, tin, cobalt, nickel, antimony, mercury , cadmium, bismuth, gold, silver, platinum, ruthenium, rhodium, palladium, osmium, iridium , beryllium, lithium, rubidium, cesium, titanium, zirconium, hafnium, vanadium, niobium, tantalum, tungsten, molybdenum, gallium, indium, thallium, germanium, rhenium, lanthanum, cerium, Praseodymium, neodymium, samarium, europium, gadolinium, terbium, dysprosium, holmium, erbium, thulium, ytterbium, lutetium, scandium, yttrium, silicon, boron, selenium, tellurium, arsenic, thorium. (Currently, all common metals can be tested, some rare metals have yet to be tested, and the above metal parts have not been tested).
Used in the IT industry, communications industry, machine equipment manufacturing, food companies, pharmaceuticals, watches and glasses, crafts as gifts, precious metals and jewelry, leather clothing, packaging and printing stoves, precision company hardware, jewelry, electrical and electronic appliances, instruments and main instruments and other metal materials industries .
pulsed fiber laser | 20QS+ | 30QS+ | |
Wavelength ( nm ) | 1064±5 | 1064±5 | |
polarization | random | random | |
Optical isolator | Yes | Yes | |
Average output power (W) | ≥20 | ≥30 | |
Single pulse energy (mJ) | 0.67 mJ@30KHz | 0.75 mJ@40KHz | |
Beam quality ( M2 ) | ≤1.6 | ≤1.6 | |
Spot diameter ( mm ) | 6～8 | 6～8 | |
Pulse width ( ns ) | 120～150@30KHz | 130 ～160@40KHz | |
Repetition frequency ( kHz ) | 30-60 | 40-60 | |
Output power adjustment range ( % ) | 10~100 | 10~100 | |
Output light separation length ( m ) | 3.2±0.2 | 3.2±0.2 | |
Operating voltage ( VDC ) | 24±1 | 24±1 | |
Input power (20 ℃ ) ( W ) | <200 | <240 | |
Refrigeration method | air cooling | ||
Dimensions W×D×H ( mm*mm*mm ) | 290*215*95 | 290*215*95 | |
Working temperature ( ℃ ) | 0～40 | 0～40 | |
Storage temperature ( ℃ ) | -10～60 | -10～60 | |
Humidity ( % ) | 30～85 | 30～85 | |
