Products Description

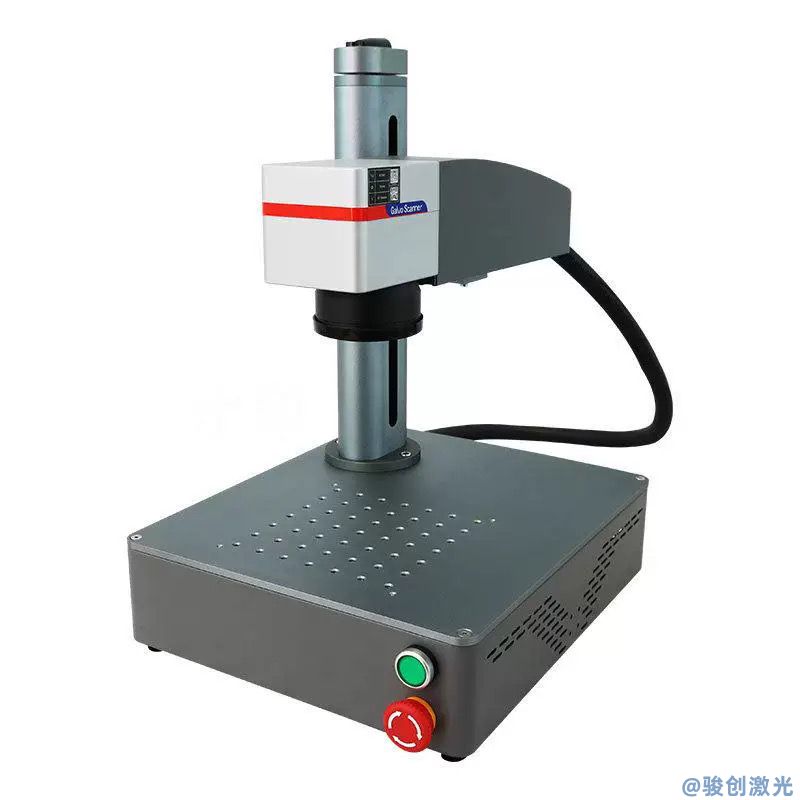

Special laser marking machines for craft gifts generally use portable or small machines, but they can use ultraviolet laser, fiber laser, or CO2 laser. For example, our common Coke cans, license plates, military plates, mobile phone cases, jewelry, lighters, school supplies, etc. can all be printed with this machine.
1. Parameters equipped with UV laser
parameter | SEAL | |||
Series model | 355-3 | 355-5 | 355-10S | 355-15S |
central wavelength | 355nm | |||
average power | > 3W@30kHz | > 5W@40kHz | > 10W@60kHz | > 15W@60kHz |
pulse width | < 15ns@30kHz | < 15ns@40kHz | 18ns@60kHz | |
frequency range | 20kHz-150kHz | 40kHz-300kHz | ||
spatial pattern | TEM 00 | |||
Beam quality | M2≤ 1.2 | |||
Spot roundness | > 90% | |||
Beam divergence angle | ≤ 2mrad | |||
Spot diameter | Non-expanded beam: 0.55±0.15mm | Non-expanded beam: 0.45±0.15mm | ||
Degree of polarization | > 100:1 | |||
polarization direction | level | |||
average power stability | RMS ≤ 3%@24hrs | |||
Pulse stability | RMS ≤ 3%@30kHz | RMS ≤ 3%@40kHz | RMS ≤ 3%@60kHz | |
working temperature | 0~40℃ | |||
Storage temperature | -15~50℃ | |||
Cooling method | water cooling | |||
Distribution needs | DC 12V | DC 36V | ||
average power consumption | <350W | |||
2. Parameters equipped with co2 laser
ModelModel | RLT-30 | RLT-60 |
WavelengthWavelength | 10.6μm | 10.6μm |
Rated Power | >30W | >60W |
Power InstabilityPower Instability | ≤±5% | ≤±5% |
Beam QualityBeam Quality | M2<1.2 | M2<1.2 |
Beam Size Beam Size | 1.8±0.2mm | 1.8±0.2mm |
Beam Divergence | 7.5 ± 0.5mrad | 7.5±0.5mrad |
Polarization | Horizontal linear polarization (> 100:1 ) Horizontal Linear Polarization(> 100:1) | Horizontal linear polarization (> 100:1 ) Horizontal Linear Polarization(> 100:1) |
modulation frequency Modulation Frequency | 0～25kHz,0～100% | 0～25kHz,0～100% |
Weight | 6.2KG | 10KG |
SizeSize (L*W*H) | 357mm X 92.5mm X 142mm | Air-cooling Air-cooling 536mmX92.5mmX154mm Water-cooling air-cooling water-cooling 560mmX92.5mmX93mm |
Electrical Input | DC 48V/12A | DC 48V/20A |
Heat loadHeat load | < 500(W) | < 1000(W) |
Working case temperature Maximum Case Temperature | < 60℃(140℉) | < 60℃(140℉) |
Working environment temperature Ambient Temperature at Work | < 15～40℃(59～104℉) | < 15～40℃(59～104℉) |
HumidityHumidity | non-condensing Non-condensing | non-condensing Non-condensing |
Transport and storage ambient temperature Transportation and Storage Environments Temperature | -10～60℃(14～140℉) | -10～60℃(14～140℉) |
3. Parameters equipped with fiber laser
pulsed fiber laser | 20QS+ | 30QS+ | |
Wavelength ( nm ) | 1064±5 | 1064±5 | |
polarization | random | random | |
Optical isolator | Yes | Yes | |
Average output power (W) | ≥20 | ≥30 | |
Single pulse energy (mJ) | 0.67 mJ@30KHz | 0.75 mJ@40KHz | |
Beam quality ( M2 ) | ≤1.6 | ≤1.6 | |
Spot diameter ( mm ) | 6～8 | 6～8 | |
Pulse width ( ns ) | 120～150@30KHz | 130 ～160@40KHz | |
Repetition frequency ( kHz ) | 30-60 | 40-60 | |
Output power adjustment range ( % ) | 10~100 | 10~100 | |
Output light separation length ( m ) | 3.2±0.2 | 3.2±0.2 | |
Operating voltage ( VDC ) | 24±1 | 24±1 | |
Input power (20 ℃ ) ( W ) | <200 | <240 | |
Refrigeration method | air cooling | ||
Dimensions W×D×H ( mm*mm*mm ) | 290*215*95 | 290*215*95 | |
Working temperature ( ℃ ) | 0～40 | 0～40 | |
Storage temperature ( ℃ ) | -10～60 | -10～60 | |
Humidity ( % ) | 30～85 | 30～85 | |
