Products Description

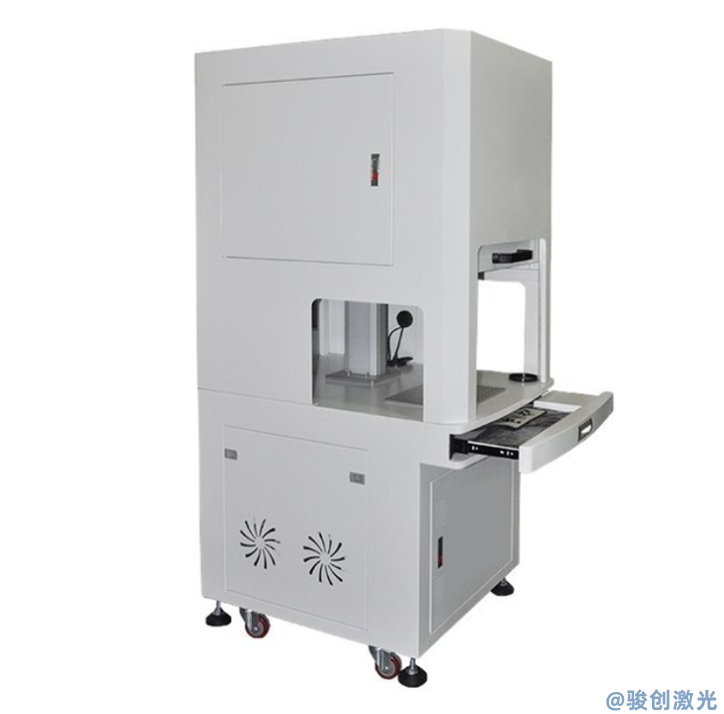

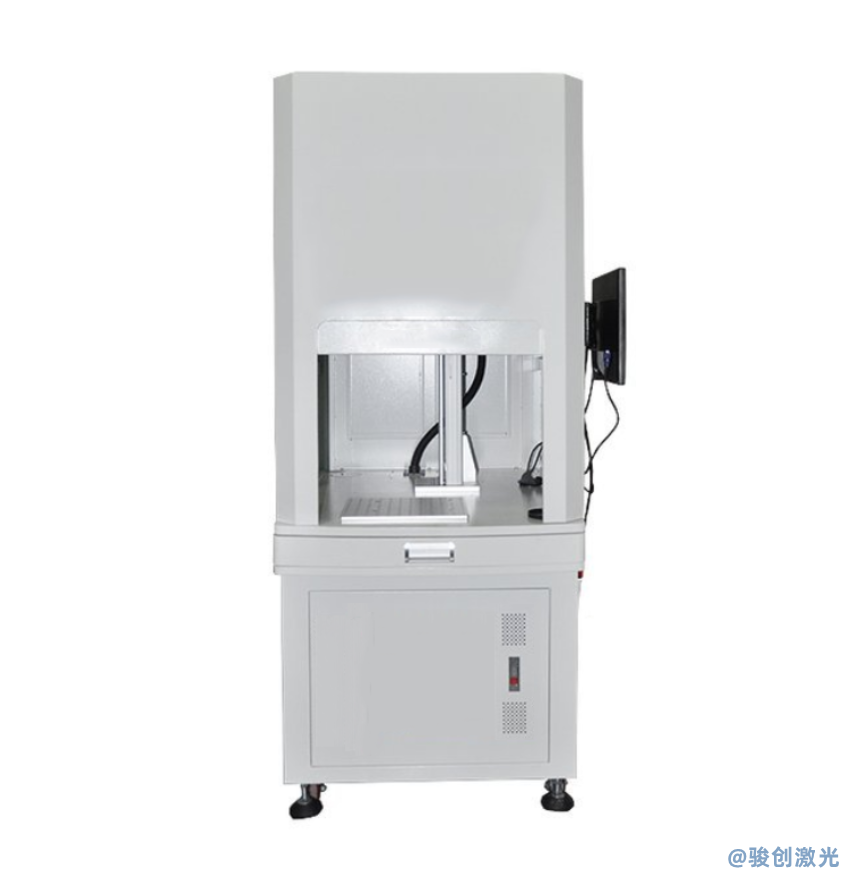

The professional marking machine for experimental scientific research is specially designed for customers with special processing requirements and environmental concerns. The fully enclosed processing method ensures that the space is dust-free, and the smoke and dust generated by the processing are blocked in the box, thus not causing any damage to the processing. Environmental pollution is beneficial to machine maintenance and the environment in the processing room.
This equipment can be equipped with lasers in various bands, such as fiber laser 1064nm, co2 laser 10.64um, ultraviolet laser 533mm and other band lasers, allowing customers to use it in different field lenses and application precautions.
Including various scientific research laboratories, closed workshops, etc., all can use experimental scientific research professional marking machines.
1. Parameters equipped with UV laser
parameter | SEAL | |||
Series model | 355-3 | 355-5 | 355-10S | 355-15S |
central wavelength | 355nm | |||
average power | > 3W@30kHz | > 5W@40kHz | > 10W@60kHz | > 15W@60kHz |
pulse width | < 15ns@30kHz | < 15ns@40kHz | 18ns@60kHz | |
frequency range | 20kHz-150kHz | 40kHz-300kHz | ||
spatial pattern | TEM 00 | |||
Beam quality | M2≤ 1.2 | |||
Spot roundness | > 90% | |||
Beam divergence angle | ≤ 2mrad | |||
Spot diameter | Non-expanded beam: 0.55±0.15mm | Non-expanded beam: 0.45±0.15mm | ||
Degree of polarization | > 100:1 | |||
polarization direction | level | |||
average power stability | RMS ≤ 3%@24hrs | |||
Pulse stability | RMS ≤ 3%@30kHz | RMS ≤ 3%@40kHz | RMS ≤ 3%@60kHz | |
working temperature | 0~40℃ | |||
Storage temperature | -15~50℃ | |||
Cooling method | water cooling | |||
Distribution needs | DC 12V | DC 36V | ||
average power consumption | <350W | |||
2. Parameters equipped with co2 laser
ModelModel | RLT-30 | RLT-60 |
WavelengthWavelength | 10.6μm | 10.6μm |
Rated Power | >30W | >60W |
Power InstabilityPower Instability | ≤±5% | ≤±5% |
Beam QualityBeam Quality | M2<1.2 | M2<1.2 |
Beam Size Beam Size | 1.8±0.2mm | 1.8±0.2mm |
光束發散角Beam Divergence | 7.5±0.5mrad | 7.5±0.5mrad |
偏振Polarization | 水平線偏振(> 100:1) Horizontal Linear Polarization(> 100:1) | 水平線偏振(> 100:1) Horizontal Linear Polarization(> 100:1) |
調制頻率 Modulation Frequency | 0～25kHz,0～100% | 0～25kHz,0～100% |
重量Weight | 6.2KG | 10KG |
尺寸Size(L*W*H) | 357mm X 92.5mm X 142mm | 風冷風冷Air-cooling 536mmX92.5mmX154mm 水冷風冷water-cooling 560mmX92.5mmX93mm |
電輸入Electrical Input | DC 48V/12A | DC 48V/20A |
熱負荷Heat load | < 500(W) | < 1000(W) |
工作外殼溫度 Maximum Case Temperature | < 60℃(140℉) | < 60℃(140℉) |
工作環境溫度 Ambient Temperature at Work | < 15～40℃(59～104℉) | < 15～40℃(59～104℉) |
濕度Humidity | 非冷凝 Non-condensing | 非冷凝 Non-condensing |
運輸和存儲環境溫度 Transportation and Storage Environments Temperature | -10～60℃(14～140℉) | -10～60℃(14～140℉) |
3、配備光纖激光器的參數
脈沖光纖激光器 | 20QS+ | 30QS+ | |
波長 | 1064±5 | 1064±5 | |
偏振 | 隨機 | 隨機 | |
光隔離器 | Yes | Yes | |
平均輸出功率 (W) | ≥20 | ≥30 | |
單脈沖能量 (mJ) | 0.67 mJ@30KHz | 0.75 mJ@40KHz | |
光束質量(M2) | ≤1.6 | ≤1.6 | |
光斑直徑 | 6～8 | 6～8 | |
脈沖寬度 | 120～150@30KHz | 130～160@40KHz | |
重復頻率(kHz) | 30-60 | 40-60 | |
輸出功率調節范圍(%) | 10~100 | 10~100 | |
輸出光隔長度 | 3.2±0.2 | 3.2±0.2 | |
工作電壓(VDC) | 24±1 | 24±1 | |
輸入功率(20℃)(W) | <200 | <240 | |
制冷方式 | 風冷 | ||
尺寸 W×D×H(mm*mm*mm) | 290*215*95 | 290*215*95 | |
工作溫度(℃) | 0～40 | 0～40 | |
Storage temperature ( ℃ ) | -10～60 | -10～60 | |
Humidity ( % ) | 30～85 | 30～85 | |
4. Different lasers and different pulse widths can be customized.
