Products Description

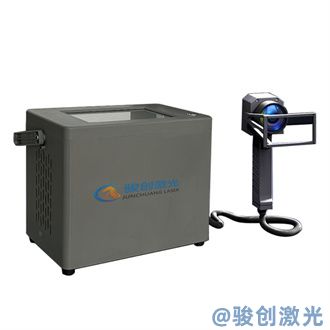

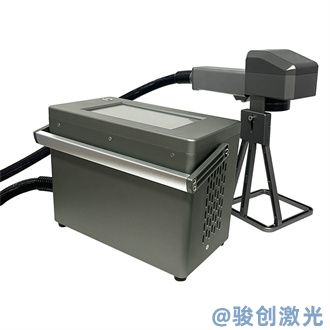

The JunChuang handheld laser marking machine is a portable, battery-powered, and fully autonomous marking machine! Thanks to its powerful 24V lithium-ion battery power system, it can maintain operation for 6-8 hours under normal usage conditions, providing strong endurance and eliminating the hassle of cables, while also avoiding the embarrassment of sudden power outages during use. Its lightweight and multifunctional nature make it particularly suitable for precise marking on large, bulky, or difficult-to-move workpieces.
It is robust and reliable, with an overall machine weight of 6 kg and a marking head that weighs only 1.25 kg. It features an ergonomically designed grip for comfortable holding and easy operation. With a rear USB interface, the software supports marking content such as text, patterns, QR codes, barcodes, serial numbers, and graphics. Additionally, the Q8 comes with a dedicated carrying case for convenient storage and transportation to different locations. It is one of the smallest rechargeable laser marking machines currently available on the market!
Powerful and reliable, with an overall machine weight of 6 kg and a marking head of only 1.25 kg. The ergonomically designed grip provides a comfortable grip and simple operation.
Utilizes a 24V lithium-ion battery for complete wireless operation, maintaining work for 6-8 hours under normal use.
Equipped with a MAX 20W fiber laser source, it offers high-quality beam spots and stable output power, making it flexible for application on metallic and some non-metallic materials.
Incorporates a new power control design, allowing the device to be charged during operation, enabling continuous work and improving processing efficiency.
| Item | Specification Table | JC-MINI-20 (Lithium Battery) | JC-MINI-30 | |
|---|---|---|---|---|
| Features | Machine Material | Aluminum | Aluminum | Aluminum |
| Features | Laser | Fiber laser (with a lifespan of 100,000 hours) | Fiber laser (with a lifespan of 100,000 hours) | Fiber laser (with a lifespan of 100,000 hours) |
| Features | Wavelength | 1064nm | 1064nm | 1064nm |
| Features | Actual Output Power | ≥20W | ≥30W | |
| Features | Marking Speed | ≤12000mm/s | ≤12000mm/s | ≤12000mm/s |
| Features | Main Control | 10-inch touch controller | 10-inch touch controller | 10-inch touch controller |
| Features | Cooling System | Air-cooled | Air-cooled | Air-cooled |
| Parameters | Focusing Lens | Focal length of 183.5mm | Focal length of 183.5mm | Focal length of 183.5mm |
| Parameters | Minimum Line Width | 0.0012mm | 0.0012mm | 0.0012mm |
| Parameters | Repeated Positioning Accuracy | 0.003mm | 0.003mm | 0.003mm |
| Parameters | Marking Range | 110mm×110mm | 110mm×110mm | 110mm×110mm |
| Parameters | Positioning Method | Red light indication | Red light indication | Red light indication |
| Parameters | Number of Marking Characters Lines | Arbitrary lines within the marking range | Arbitrary lines within the marking range | Arbitrary lines within the marking range |
Tags:
Technical parameter
CO2 Flying Laser Marking Machine
Fiber laser flying inkjet printer
UV laser flying inkjet printer
Split laser marking machine
Item | Specification Table | JC-MINI-20 (Lithium Battery) | JC-MINI-30 |
Features | Machine Material | Aluminum | Aluminum |
Features | Laser | Fiber laser (with a lifespan of 100,000 hours) | Fiber laser (with a lifespan of 100,000 hours) |
Features | Wavelength | 1064nm | 1064nm |
Features | Actual Output Power | ≥20W | ≥30W |
Features | Marking Speed | ≤12000mm/s | ≤12000mm/s |
Features | Main Control | 10-inch touch controller | 10-inch touch controller |
Features | Cooling System | Air-cooled | Air-cooled |
Parameters | Focusing Lens | Focal length of 183.5mm | Focal length of 183.5mm |
Parameters | Minimum Line Width | 0.0012mm | 0.0012mm |
Parameters | Repeated Positioning Accuracy | 0.003mm | 0.003mm |
Parameters | Marking Range | 110mm×110mm | 110mm×110mm |
Parameters | Positioning Method | Red light indication | Red light indication |
Parameters | Number of Marking Characters Lines | Arbitrary lines within the marking range | Arbitrary lines within the marking range |
Software Introduction | Language | Traditional Chinese, English, French, Spanish, German, Simplified Chinese, Russian, Arabic, etc. (21 languages in total) | Traditional Chinese, English, French, Spanish, German, Simplified Chinese, Russian, Arabic, etc. (21 languages in total) |
Software Introduction | Management Permissions | Multi-user management permissions | Multi-user management permissions |
Software Introduction | System | 4701 system | 4701 system |
Software Introduction | Reserved Signals | Start printing, printing status, printing completed, fault alarm | Start printing, printing status, printing completed, fault alarm |
Software Introduction | Data Protection | Power-fail data protection function | Power-fail data protection function |
Supported Types | Fonts | Standard font libraries for Chinese and English, numbers, traditional Chinese, etc. | Standard font libraries for Chinese and English, numbers, traditional Chinese, etc. |
Supported Types | File Formats | BMP/DXF/HPGL/JPEG/PLT | BMP/DXF/HPGL/JPEG/PLT |
Supported Types | Barcodes | CODE39, CODE128, CODE126, QR, TrueCode (optional) | CODE39, CODE128, CODE126, QR, TrueCode (optional) |
Preparation Parameters | Power Supply | Standard: External power supply 220V/50HZ Optional: Built-in battery: 11600mA | Standard: External power supply 220V/50HZ Optional: Built-in battery: 11600mA |
Preparation Parameters | Power Consumption | 200W | 200W |
Preparation Parameters | Lithium Battery Standby Time | Approximately 12 hours | Approximately 12 hours |
Preparation Parameters | Net Machine Weight | 20W Plug-in Version: Chassis: 4.5kg, Head: 1.1kg, Packaged Total Weight: Approximately 7kg 20W Lithium Battery Version: Chassis: 6.2kg, Head: 1.1kg, Packaged Total Weight: Approximately 9kg | 20W Plug-in Version: Chassis: 4.5kg, Head: 1.1kg, Packaged Total Weight: Approximately 7kg 20W Lithium Battery Version: Chassis: 6.2kg, Head: 1.1kg, Packaged Total Weight: Approximately 9kg |
Preparation Parameters | Dimensions | Chassis: 300190260, Head: 260120290mm, Packaging Box: 610250345mm | Chassis: 300190260, Head: 260120290mm, Packaging Box: 610250345mm |
Environment | Requirements | External Temperature: 0℃-45℃; Humidity: ≤95%; Non-condensing; No vibration | External Temperature: 0℃-45℃; Humidity: ≤95%; Non-condensing; No vibration |
