Products Description

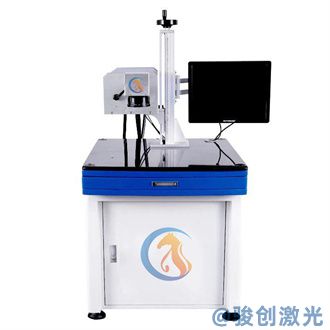

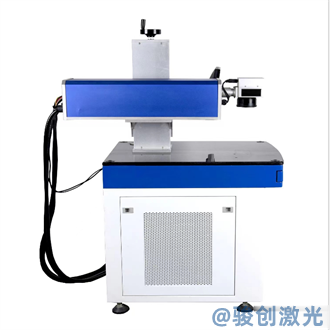

The light source used by the special laser marking machine for wood products is CO2 laser, whose main wavelength is 10.64um, so it absorbs non-metallic materials better. The carbon dioxide gas is filled into the high-voltage discharge tube to produce a glow discharge, which releases the gas molecules. Laser, after amplifying the laser energy, forms a laser beam for material processing. The laser beam vaporizes the surface of the workpiece to achieve the purpose of engraving. This kind of laser is basically a special equipment for wood products. After careful tuning by us, the marking efficiency is better and more accurate.
Wood products CO2 laser marking machine uses:
1. It is easy to learn, use and operate, and does not require high requirements on the operator. After a short period of training, the operating skills of the laser equipment can be mastered.
2. High flexibility, even very complex graphics can be presented immediately after drawing through advanced engraving software.
3. It has a wide range of applications. Wood products processing technology, other non-metallic and metallic materials can also be processed using this laser equipment.
Equipment typeEquipment type
JC-CO2
JC-CO2
Laser powerLaser power
40-150W
90W、100W
Laser typeLaser type
10.6nmCO2 laserImported 10.6nm CO2 laser
CO2 sealed-off glass tube laserCO2 sealed-off glass tube laser
Repetition rate
≤50KHZ
Marking rangeMarking range
100*100~~300*300mm
Minimum line widthMinimum line width
0.22mm
0.3mm
Marking speedMarking speed
0-7000mm/s
0-2000mm/s
Support formatSupport format
AI、DST、DXF、BMP、PLT
Working voltage Working voltage
220V±10% 50Hz(60Hz)
Overall machine powerPower
≤ 3KW (excluding external equipment)
